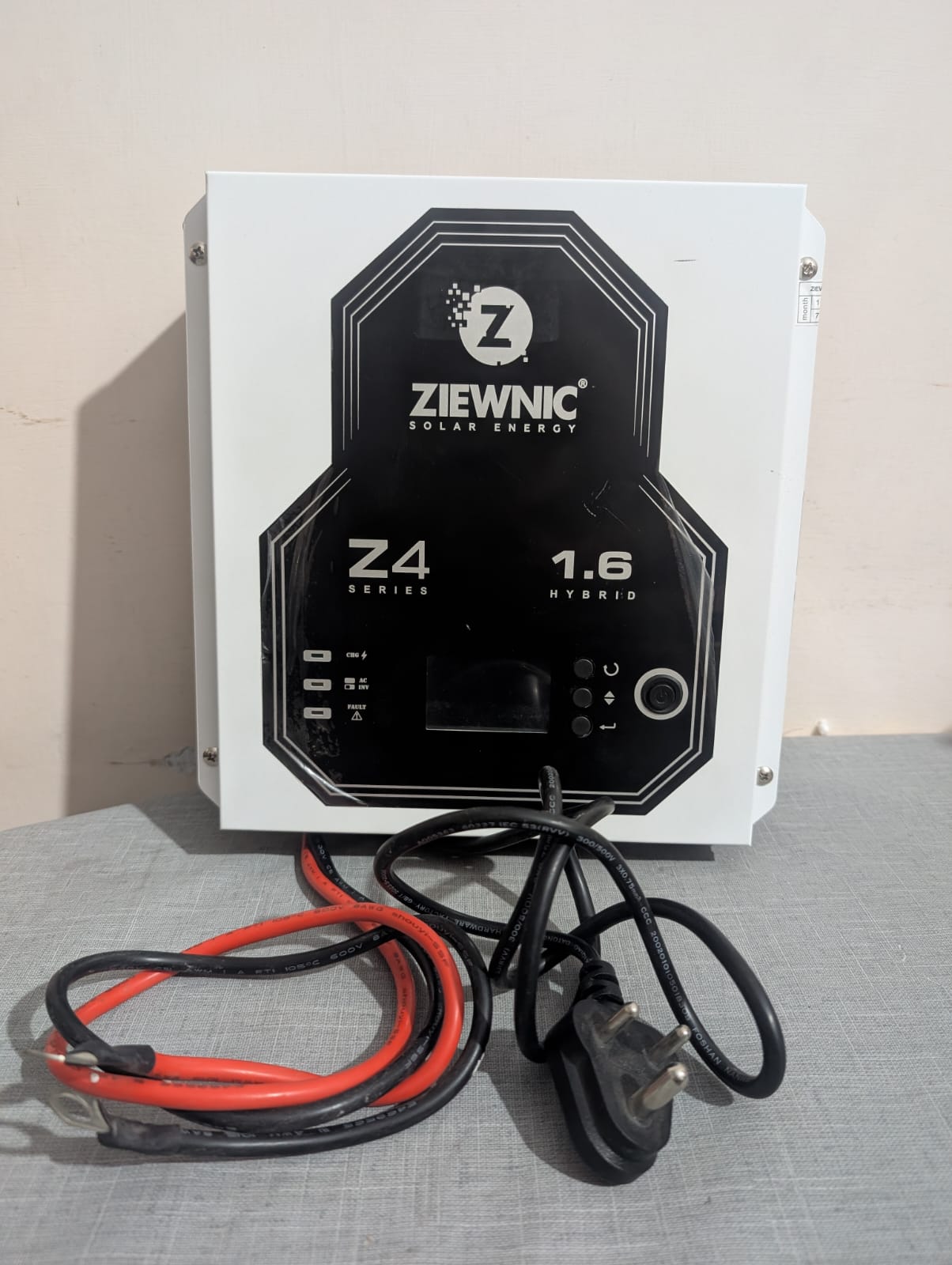

ZIEWNIC Z4 Series 1.6 KVA Hybrid Solar Inverter – 1050W

Short Product Description

Power your essential home appliances during load shedding with the Ziewnic Z4 Series 1.6 KVA Hybrid Solar Inverter.

Designed for 12V battery systems, the Z4 combines inverter, AC charger and solar charging functions in one compact unit. It features a built-in 60A semi-MPPT solar charge controller and supports up to 1000W of solar PV capacity, making it suitable for small home backup and solar applications.

Rated Power: 1600VA / 1050W
Battery System: 12V DC
Solar Charging: 60A Semi-MPPT
Maximum PV Capacity: 1000W
Maximum PV Open-Circuit Voltage: 40V
Waveform: Simulated Sine Wave

Product Overview

The Ziewnic Z4 1.6 KVA Hybrid Solar Inverter is an all-in-one power solution for users who need reliable backup power and solar charging in a compact system.

It can operate with mains electricity, battery power and solar charging, allowing the system to automatically switch between available power sources according to the configured settings.

With a 1600VA / 1050W rated output, it is designed for essential household loads such as lights, fans, TVs, routers and other compatible appliances within its power capacity.

The inverter uses a 12V battery bank, making it particularly suitable for smaller backup systems where a 12V battery setup is preferred.

Key Features

• 1600VA / 1050W rated power

• 12V DC battery system

• Built-in 60A semi-MPPT solar charge controller

• Supports up to 1000W solar PV array

• Maximum PV open-circuit voltage: 40V

• Hybrid operation with configurable settings

• Automatic line-to-battery changeover

• Built-in AC charger

• Battery equalization function

• AVR voltage regulation

• Low-battery alarm and shutdown protection

• Overcharge protection

• Overload protection

• Short-circuit protection

• Over-temperature protection

• Auto restart after AC recovery

• LCD/LED display and buzzer indications

• Wall-mounted/rack-style installation

• Conformal coating for improved protection against dust and humidity

Technical Specifications

Specifications are based on the manufacturer's published Z4 1.6 KVA specifications. Always verify the exact unit/revision before installation.

Solar Input – Important

The Z4 has a maximum PV open-circuit voltage of 40V and a PV operating range of 15–40V DC.

This is an important specification when selecting solar panels.

Do not connect a solar-panel configuration that exceeds the inverter's 40V maximum PV open-circuit voltage.

Solar panel Voc can increase in certain conditions, so the complete panel configuration must be checked before installation. A qualified solar installer should verify the panel Voc, Vmp and current against the inverter specifications.

Do not assume that standard high-voltage residential solar panel strings are compatible with this inverter.

Battery Requirement

The Ziewnic Z4 operates on a 12V DC battery system.

Compatible battery technology should be selected according to the inverter's charging parameters and the manufacturer's recommendations.

Possible battery options may include:

• 12V lead-acid battery systems

• Compatible 12V tubular batteries

• Compatible 12V lithium battery systems, subject to proper charging-voltage compatibility

For lithium batteries, make sure the battery/BMS charging parameters are compatible with the inverter before installation.

Battery capacity is not included with the inverter unless specifically mentioned in the product package.

What Can It Run?

With a rated output of 1050W, the inverter is intended for loads within its rated capacity.

Suitable examples can include:

• LED lights

• Ceiling fans

• DC/AC fans

• Wi-Fi routers

• TVs

• Computers

• Small electronics

• Selected small household appliances

• Other compatible loads within the inverter's power rating

Actual operation depends on the appliance's running power, starting/surge requirements and the total connected load.

Important

Do not select appliances based only on their running wattage. Appliances with motors or compressors can have significantly higher starting/surge requirements.

Examples include:

• Refrigerators

• Water pumps

• Large fans

• Air conditioners

• Compressors

Always check the appliance's starting power before connecting it.

Why Choose the Ziewnic Z4?

Hybrid Power System

Use available mains, battery and solar power through one integrated inverter system.

Built-In Solar Charger

The inverter includes a 60A semi-MPPT solar charging controller, reducing the need for a separate solar charge controller.

12V Battery System

A 12V architecture makes it suitable for smaller backup systems and applications where a 12V battery bank is preferred.

Multiple Protection Features

Built-in protection helps protect the inverter and connected system against conditions such as overload, short circuit, over-temperature and low battery.

Compact Solution

Inverter, charger and solar charging functions are integrated into one unit.

Protection Features

The Ziewnic Z4 includes protection and warning functions such as:

• Low battery alarm

• Low battery shutdown

• Overcharge protection

• Overload alarm

• Overload shutdown

• Short-circuit protection

• Over-temperature shutdown

• Reverse polarity protection

• Auto restart after AC recovery

Important Load Limitation

Maximum rated output: 1050W

For reliable operation, avoid continuously operating the inverter at its absolute maximum rating.

The actual usable load depends on:

• Battery condition

• Battery capacity

• Appliance starting current

• Solar generation

• Ambient temperature

• Wiring and installation quality

• Input voltage

• Connected load profile

Installation

Professional installation is recommended.

The installation should include appropriately sized:

• Battery cables

• DC protection/fuse or breaker

• AC protection

• Solar DC protection where required

• Proper earthing/grounding

• Correctly rated connectors and terminals

Because this is a 12V / high-current inverter, battery-side current can become very high at heavy loads. Proper cable sizing and DC protection are extremely important.

Do not install or operate the inverter without following the manufacturer's installation instructions.

Package Contents

Depending on the available stock/package, the box may include:

• 1 × Ziewnic Z4 Series 1.6 KVA Hybrid Solar Inverter

• AC power cable/accessories as supplied

• Battery connection cables/accessories as supplied

• User/instruction manual

• Warranty documentation, if supplied

Package contents may vary according to the specific stock/revision.

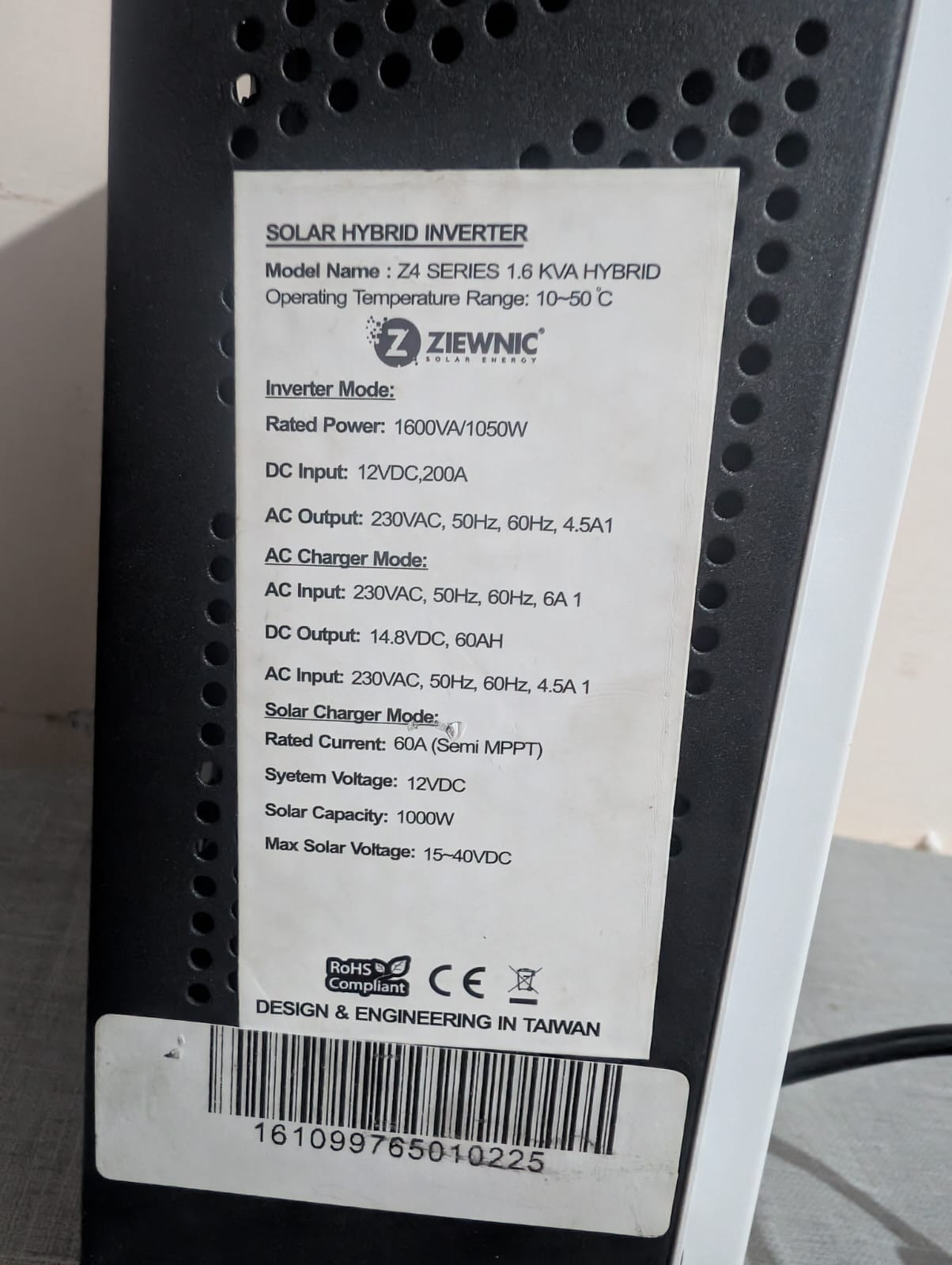

Product Details

Brand: Ziewnic
Model: Z4 Series 1.6 KVA
Product Type: Hybrid Solar Inverter
Rated Power: 1600VA / 1050W
Battery Voltage: 12V
Solar Charger: 60A Semi-MPPT
Maximum Solar Capacity: 1000W
Maximum PV Voltage: 40V
Waveform: Simulated Sine Wave

Frequently Asked Questions

Is the Ziewnic Z4 a hybrid inverter?

Yes. It combines inverter, AC charging and solar charging functions in one unit.

What is the power rating?

The Z4 is rated at 1600VA / 1050W.

What battery voltage does it use?

It uses a 12V DC battery system.

How much solar can it support?

The manufacturer's specification lists a maximum PV array power of 1000W.

Can I connect normal high-voltage solar panels?

Do not assume so. The Z4's maximum PV open-circuit voltage is only 40V. The complete solar-panel configuration must remain within the inverter's voltage limits.

Is this a pure sine wave inverter?

No. The manufacturer's specification identifies the Z4 1.6 KVA as a simulated sine wave inverter.

Does it include a battery?

No, unless specifically stated in the selected package.

Does it have a built-in solar charge controller?

Yes. It has a built-in 60A semi-MPPT solar charger.

Can I use it without solar panels?

Yes. It can operate as an inverter/backup system with mains and battery according to the configured operating mode.

Can I run an air conditioner on it?

It is not recommended to market this inverter for air conditioners. Its rated output is 1050W, and air conditioners can have substantial starting and running power requirements.

Can it run a refrigerator?

It may be possible depending on the refrigerator's running and starting requirements, but compatibility should be confirmed before purchase.

Can it run fans and lights?

Yes, provided the combined running and starting load remains within the inverter's capabilities.

Important Customer Notice

This product is a 1050W-rated hybrid inverter, not a high-power household solar inverter.

Before purchasing, customers should ensure that:

1. Their total load is suitable for 1050W output.

2. Their battery system is compatible with the inverter's 12V requirement.

3. Their solar-panel configuration stays within the 40V maximum PV open-circuit voltage.

4. Motor/compressor loads have been checked for starting power.

5. Installation is performed correctly by a qualified technician.
